Custom Silicon Nitride Ceramic Parts & Components (Si₃N₄)
Direct-factory multi-axis diamond grinding of conventionally sintered Silicon Nitride components. Engineered for superior thermal shock resistance, extreme mechanical toughness, and high mechanical fatigue limits.
Request a QuoteView Machining Capabilities
Strategic Manufacturing Advantage
Our factory excels in grinding complex Si₃N₄ micro-features, thread milling, and deep slotting, completely overcoming material brittleness to deliver robust high-frequency testing components.
Key Material Properties
Quantitative engineering data for design validation and material selection
Why Choose Silicon Nitride?
Si₃N₄ delivers the best combination of strength, toughness, and thermal shock resistance:

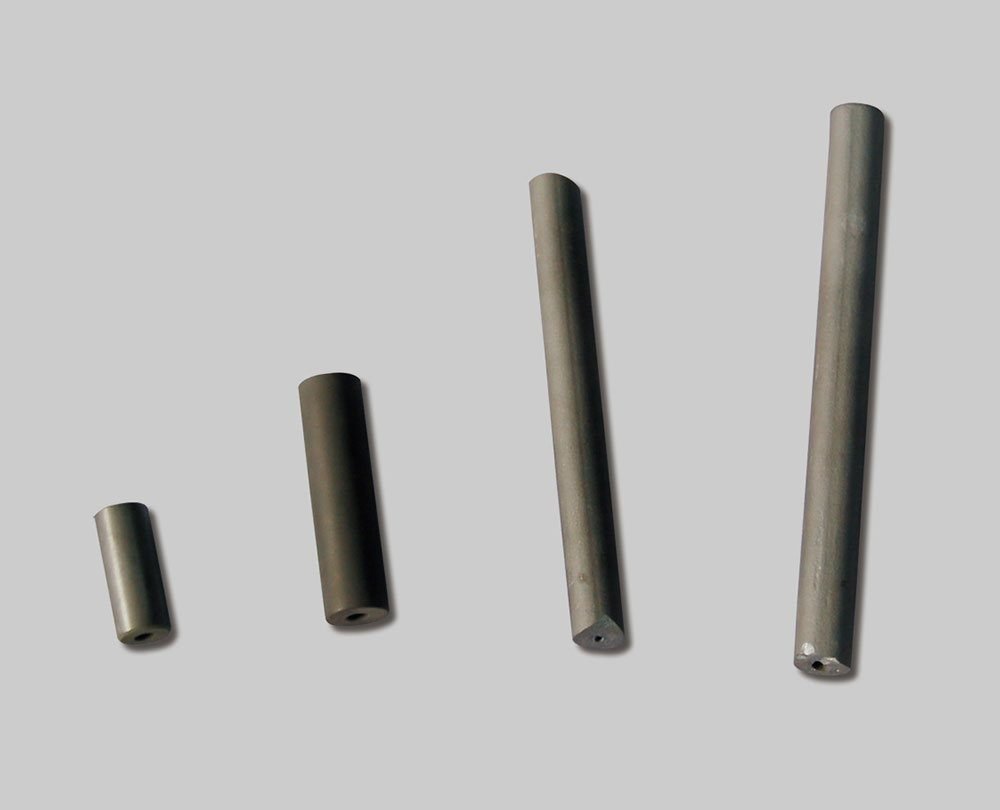

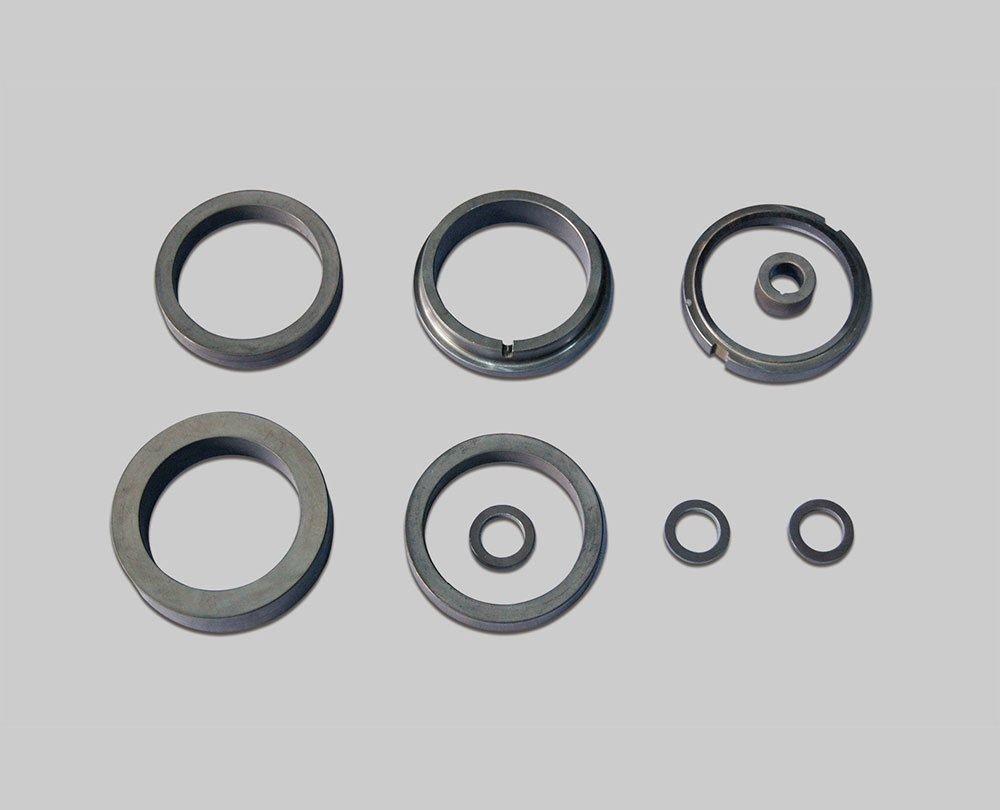

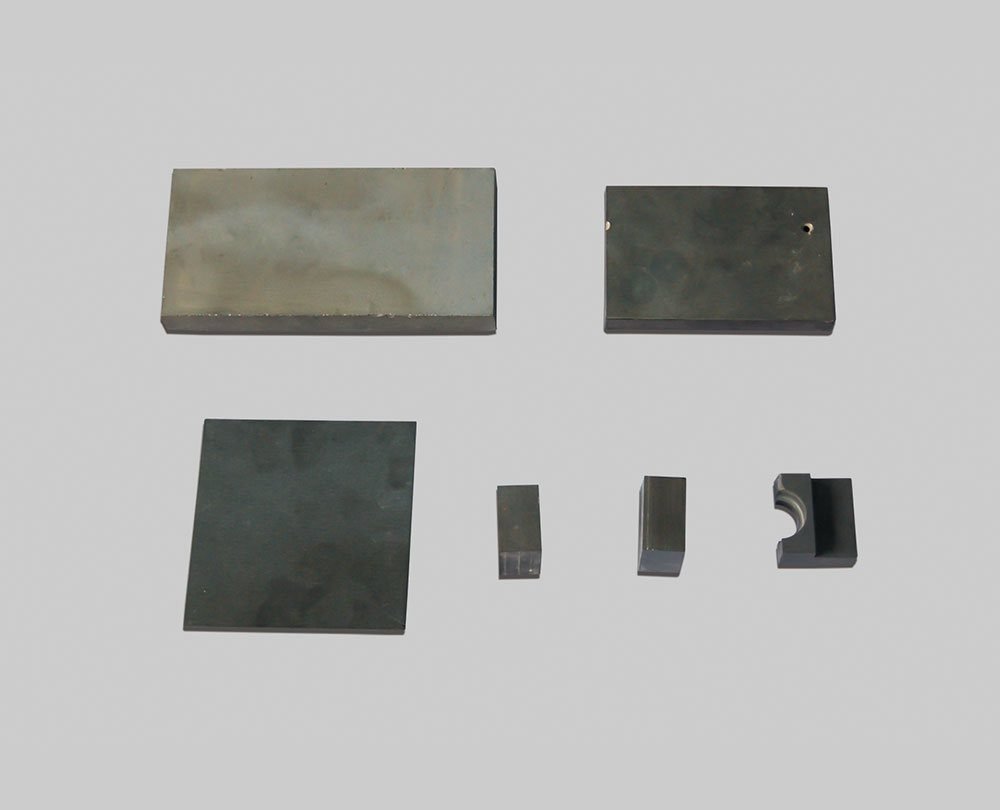

Precision Silicon Nitride Ceramic Parts
High-Value Applications
Proven performance in semiconductor testing, aerospace engineering, and industrial processing
Advanced Semiconductor Packaging & Testing
Severe Aerospace & Industrial Engineering
Industrial Processing & Automation
Typical Mechanical & Thermal Properties
Reference data for Conventionally Sintered Silicon Nitride at room temperature
| Property | Test Method | Unit | Value |
|---|---|---|---|
| Density | ISO 2738 | g/cm³ | 3.18 |
| Flexural Strength | ISO 14704 | MPa | 700 |
| Young’s Modulus | ISO 17561 | GPa | 300 |
| Vickers Hardness | ISO 6507 | HV0.5 | ≥ 1500 |
| Fracture Toughness | ISO 23146 | MPa·m½ | ≥ 5.0 |
| Thermal Conductivity | ISO 22007 | W/m·K | 22 |
| Coefficient of Thermal Expansion | ISO 11372 | x10⁻⁶/K | 3.0 – 3.3 |
| Dielectric Strength | IEC 60243 | kV/mm | ≥ 15 |
| Volume Resistivity | IEC 60243 | Ω·cm | > 10¹⁴ |
| Max Service Temperature | Continuous | °C | 1200 |
Precision Machining Capabilities for Si₃N₄
Overcoming brittleness through advanced multi-axis diamond grinding expertise
Complex Micro-Feature Grinding
Multi-axis CNC grinding for intricate geometries, micro-slots, deep pockets, and fine details while preventing edge chipping and subsurface damage.
Thread Milling & Tapping
Precision internal and external thread grinding for Si₃N₄ components, enabling direct ceramic threading without metal inserts for high-temperature assemblies.
Deep Slot & Groove Machining
Diamond wheel profiling and plunge grinding for deep slots (aspect ratios > 5:1) with clean bottoms and vertical sidewalls.
Ball & Sphere Grinding
Precision grinding of Si₃N₄ balls and spherical components for bearing applications, achieving G10 grade sphericity and sub-micron surface finish.
Thin-Wall Component Machining
Specialized fixturing and optimized grinding parameters enable thin-wall Si₃N₄ structures (down to 0.5 mm) without fracture or distortion.
Complete Metrology Validation
100% inspection using calibrated CMM, optical comparators, and surface roughness testers with comprehensive FAI/OQC documentation.
Validate Your Silicon Nitride Component Design with KoreCera
Submit your 2D engineering blueprints or 3D CAD files (.STEP / .IGS) below. Our expert engineering team will conduct an in-depth Design-for-Manufacturability (DFM) review and deliver a competitive direct-factory quote. Fast-track prototyping completed within 7-10 business days. Full FAI, OQC, and material traceability reports provided upon delivery.
100% Strict NDA Protection Enforced
Submit Drawing for 24-Hour ReviewReady to Start Your Ceramic Component Project?
Send us your 2D drawings, 3D CAD files (.STEP / .IGS) or physical samples. Our engineering team will review manufacturability and return a competitive direct-factory quotation. Full NDA protection.
