Manufacturing capability

Precision Ceramic Grinding Services

Diamond grinding, lapping and fine finishing of fired technical ceramics to micron-level form, position and surface finish.

The video measuring system used for non contact checks.

Grinding operations

What is actually done to the part

Fully fired structural ceramics are commonly finished by diamond grinding and abrasive processes; machinable or green-state ceramics may use conventional cutting operations where appropriate. On fired parts, material is removed with diamond abrasive, in small controlled passes, which sets the diameter, the form and the position of a feature – and decides whether a callout on the drawing is reachable at all.

Grinding operations applied to ceramic components
OperationTypical featurePrimary riskMaterial sensitivityInspection output
Surface grindingFlats, plates, blocks, seating facesThin plate bows or tenses under clamp or wheel loadThinner sections and higher-modulus grades deflect soonerThickness, flatness and parallelism by height instrument or CMM
Cylindrical grindingShafts, pins, rollers, plungersSlender parts deflect between centres; chatter marksTough grades tolerate heavier passes than hard brittle gradesDiameter by micrometer; roundness on the roundness instrument
Internal grindingBores, sleeves, bushings, linersBell-mouth or taper on a long small boreQuill rigidity interacts with the hardness of the gradeBore diameter by bore gauge in process; roundness and form for the report
Centreless grindingSmall pins and ferrules in volumeSetup error reads as part error on the first-through partsGrade hardness sets the through-feed rateDiameter and roundness, sampled through the run
Form grindingProfiles, radii, grooves and tapersForm drifts as the dressed wheel wearsHard grades wear the wheel faster and drift soonerProfile by optical or CMM comparison against the model
LappingSealing faces and mating surfacesEdge roll-off and conditioning laps out of sequenceFine-grain grades take a finer lapFlatness by CMM; surface roughness on the tester
PolishingOptical, seal-grade and flow surfacesOver-polished edges and relieved internal cornersPorous or coarse-grain grades polish unevenlySurface roughness on the specified faces

Each operation lines up with a part family. Cylindrical and centreless grinding carry shafts and pins, surface and form grinding carry plates and blocks, and internal grinding carries the bores in tubes and sleeves. Where one drawing needs two of these operations, the sequence is set by whichever feature is hardest to recover if it moves late. How that sequence is fixtured, planned and checked through the run is described under custom ceramic manufacturing. Where that finished hardware ends up – spindles, guideways, metrology frames and machine-tool fixtures – is covered under precision machinery.

Ra is a cost decision, not a default

Roughness is applied to the surfaces that need it. Specifying fine finish across an entire part adds processing time without improving function.

Surface finish levels on ceramic parts
Surface conditionTypical functional useProcess routeInspection methodCost / risk driver
As-groundNon-functional faces and hidden surfacesFinal grinding pass as producedVisual and occasional roughness checkBaseline; the risk is specifying it where lapping is unnecessary
Fine groundBearing and sliding surfacesGrinding with a finer wheel and controlled passesRoughness tester on the callout surfacesModerate; adds passes and wheel changes
LappedSealing faces and mating surfacesLapping after grinding, with conditioning controlFlatness by CMM plus roughness measurementSignificant; doubles the finishing operations on the face
PolishedOptical, seal-grade and flow surfacesPolishing sequence after lapping, where reachableRoughness tester; optical check on edgesHighest, and needs a dedicated sequence plus edge protection

Surface finish capability depends on material, area, geometry, accessibility and finishing route. How far a finish has to be taken, and what each level adds in processing time, is set out in the ceramic surface finish guide.

Tolerance after diamond grinding

Figures below are the capability the shop is measured on. They are feature-specific, not a general tolerance.

0.003 mm
Hole Diameter Tolerance
0.0005 mm
Roundness
0.002 mm
Parallelism
0.2 mm
Minimum Slot Width
Ra 0.02 µm
Surface Roughness

Capabilities depend on material, geometry, feature size and finishing requirements. Critical dimensions are reviewed against the drawing.

Which tolerances diamond grinding holds

Ceramic is ground, not milled or turned, so the tolerance a feature can hold depends on the feature. These are the confirmed figures and the features they apply to.

Diamond-ground bores hold a hole diameter tolerance of 0.003 mm, and ground cylindrical and bore features hold roundness of 0.0005 mm. Opposed faces on plates, rings and blocks hold parallelism of 0.002 mm. Slots and narrow features produced by diamond grinding run down to a minimum slot width of 0.2 mm, and lapped or polished faces reach a surface roughness of Ra 0.02 µm. Each figure belongs to the feature named beside it; none of them is a general tolerance for a whole drawing. Reachability on a specific part is confirmed from the engineering drawing, because the achievable value moves with the ceramic material, the part geometry, the feature size, the wall thickness and the machining process.

The material sets the speed

Hardness is the point of using ceramic, and it is also the reason grinding takes longer than the equivalent metal operation.

Grinding behaviour by material
MaterialGrinding characteristic
AluminaPredictable, broad grade range, good general machinability
ZirconiaTough and strong; requires care to avoid transformation damage at the surface
Silicon carbideVery hard; slow removal and rapid diamond wear
Silicon nitrideHard and tough; suited to structural parts but slow to finish
Aluminum nitrideMachines well, but the surface must be kept clean for thermal paths
Boron nitrideSoft and easily machined; the outlier in the group
ENGINEERING NOTECycle time is driven by the material removed, not by the number of dimensions on the drawing. A simple part in SiC can take longer than a complex part in BN.
LIMITThin sections, sharp internal corners and long small bores all raise the risk of edge chipping. Where they appear, the achievable tolerance is set by the feature, not by the machine.

Process to measurement method

What is measured, and with which instrument. Because ceramic cannot be reworked the way metal can, dimensions are checked during the sequence rather than only at the end of it.

Inspection mapping for ground features
Process stepWhat it coversMeasurement method
Surface and form grindingThickness, flatness and parallelism on ground facesHeight measurement during the sequence, CMM for the report
Cylindrical and internal grindingDiameter and roundness of ground cylindrical and bore featuresMicrometer and bore gauge in process; roundness instrument for the report
Centreless grindingDiameter stability through a volume runMicrometer sampling through the run
Form grindingProfile, radii, grooves and tapersOptical or CMM comparison against the model
Lapping and polishingFlatness and surface roughness of fine-finished facesCMM flatness plus surface roughness measurement across the face
Small featuresBores, slots and edge geometryVideo measuring system
Precision grinding of ceramic components
Precision grinding

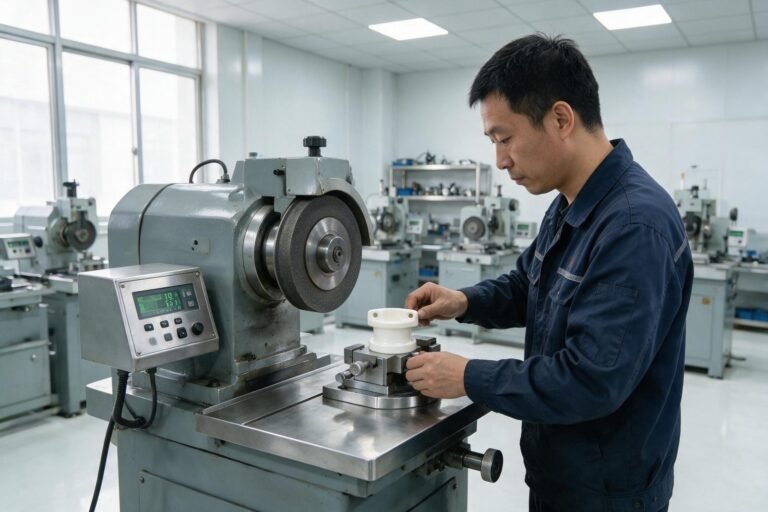

Grinding and finishing of ceramic parts
Grinding and finishing
Height measuring instrument in the inspection area
Height measurement

Findings that affect a ground part

The most frequent findings from drawing review, the reason each one fails, and the practical alternative. Where a feature cannot be made as drawn, the constraint and a feasible alternative are stated, and the design is only changed with your agreement.

Findings from drawing review
Design detailWhy it failsPractical alternative
Sharp internal cornerNo tool can produce it; stress concentrationAdd the largest radius the function allows
Deep narrow pocketTool diameter and rigidity conflictWiden the entry or split the feature
Thin wall with a tight tolerance on both facesDeflection under clamping and grindingTolerance one face and reference the other
Tolerance tighter than the processFeature-specific capability limitRelax the callout or change the route
Slot close to an edgeEdge chipping during machiningIncrease the edge distance or specify the edge break
Sharp thread in ceramicBrittle thread under fastening loadUse the thread for location rather than for load
WHERE THE COST ACTUALLY SITSThe expensive findings are not the sharp corners. They are generalised tolerances and overall surface finish callouts, because they add processing time across the whole part rather than at one feature. Grinding time, not the number of dimensions, drives cost.

Where the work is done

Grinding machines running on the shop floor, extraction ducting overhead
Grinding, on the shop floor.

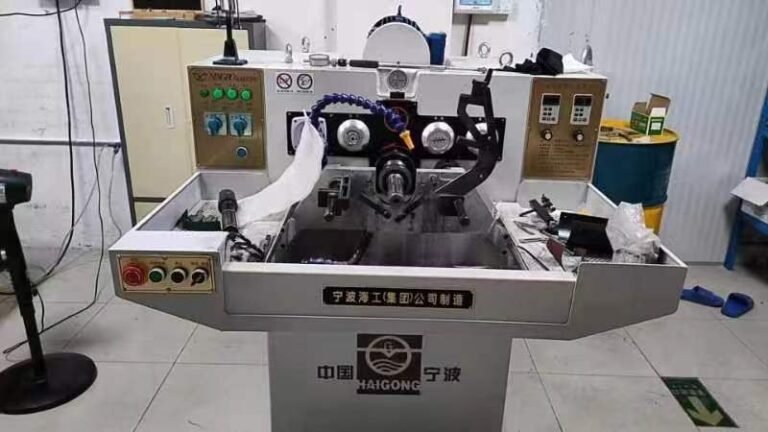

A double side grinding machine, its control panel and machine nameplate facing the camera
A double side grinder, both faces at once.
A metrology bench with a monitor, keyboard, printer and an engineering drawing laid out on the table
The inspection bench, drawing and printer to hand.

Frequently asked

Which surfaces should carry the tight tolerance?

Only the functional ones. Tolerancing a whole part to the tightest callout multiplies grinding time without adding value. Tolerance the mating and sealing faces, and let the rest sit at a general class.

Can you grind a part another supplier fired?

Usually yes, provided the blank has enough stock and the material is known. Send the material grade and the current nominal dimensions with the drawing.

How is roundness and parallelism verified?

Roundness is measured on a dedicated roundness instrument and parallelism on the coordinate measuring machine or height instrument, depending on the feature.

Does grinding change the material properties?

Grinding is primarily a surface-generation process, but near-surface residual stress, micro-damage and thermal effects can depend on material, abrasive condition, feed, cooling and finishing sequence. That is why the grinding sequence is chosen for the material rather than applied generically.

Send us the drawing and the requirement

We review manufacturability, tolerance and inspection method before quoting.
