Custom Boron Nitride Ceramic Parts & Components (BN)
Custom machining of Hot-Pressed Boron Nitride (Solid/Machinable Grade). Outstanding thermal shock resistance, zero wetness to molten metals, and clean self-lubricating properties.
Request a QuoteView Machining Capabilities
Strategic Manufacturing Advantage
We machine complex, thin-walled Boron Nitride structural components down to 0.2 mm with tight tolerances, completely avoiding material delamination or micro-fracturing in vacuum fixture designs.
Key Material Properties
Quantitative engineering data for design validation and material selection
Why Choose Boron Nitride?
Hot-Pressed BN offers unique properties unmatched by other ceramics:

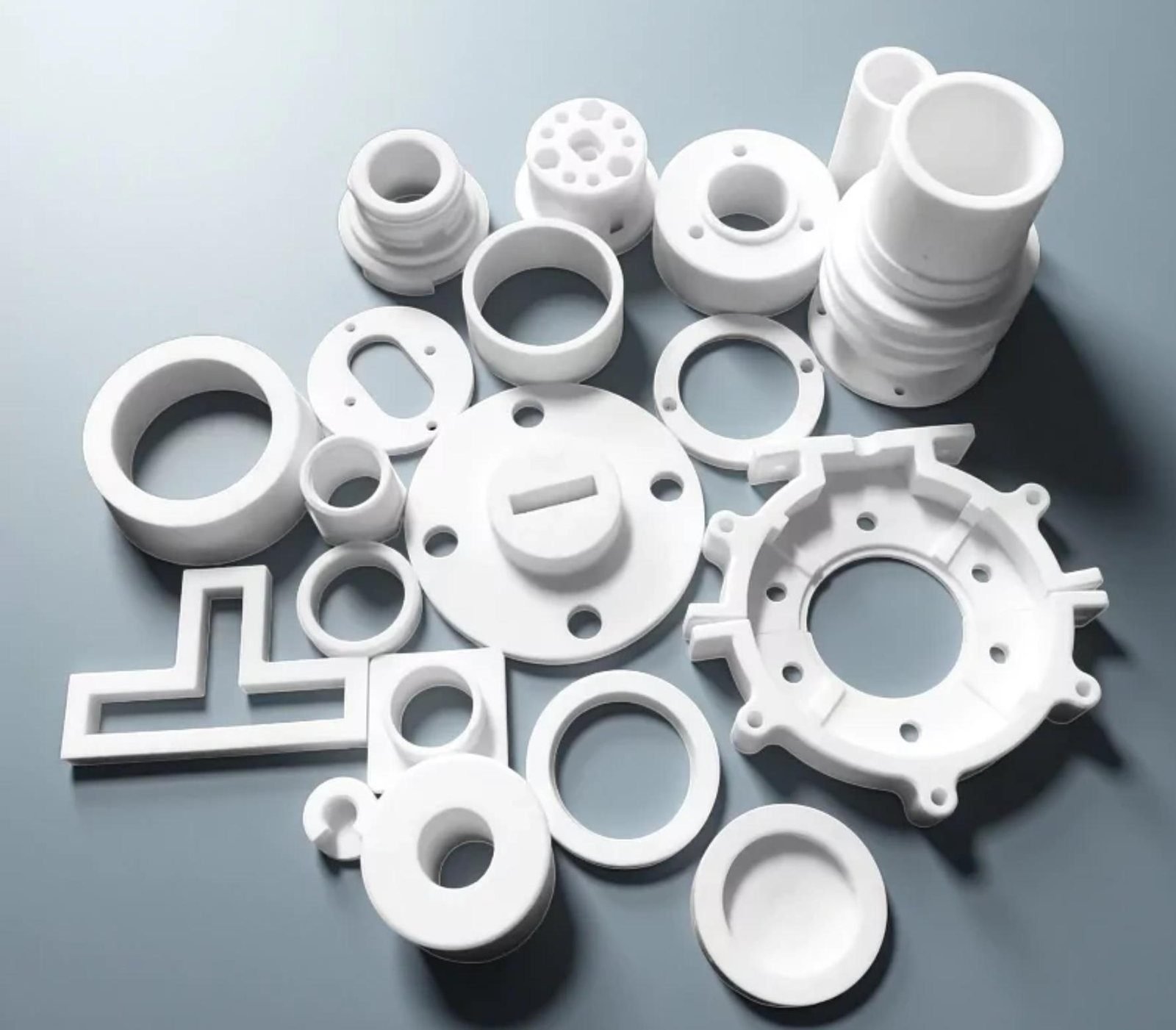

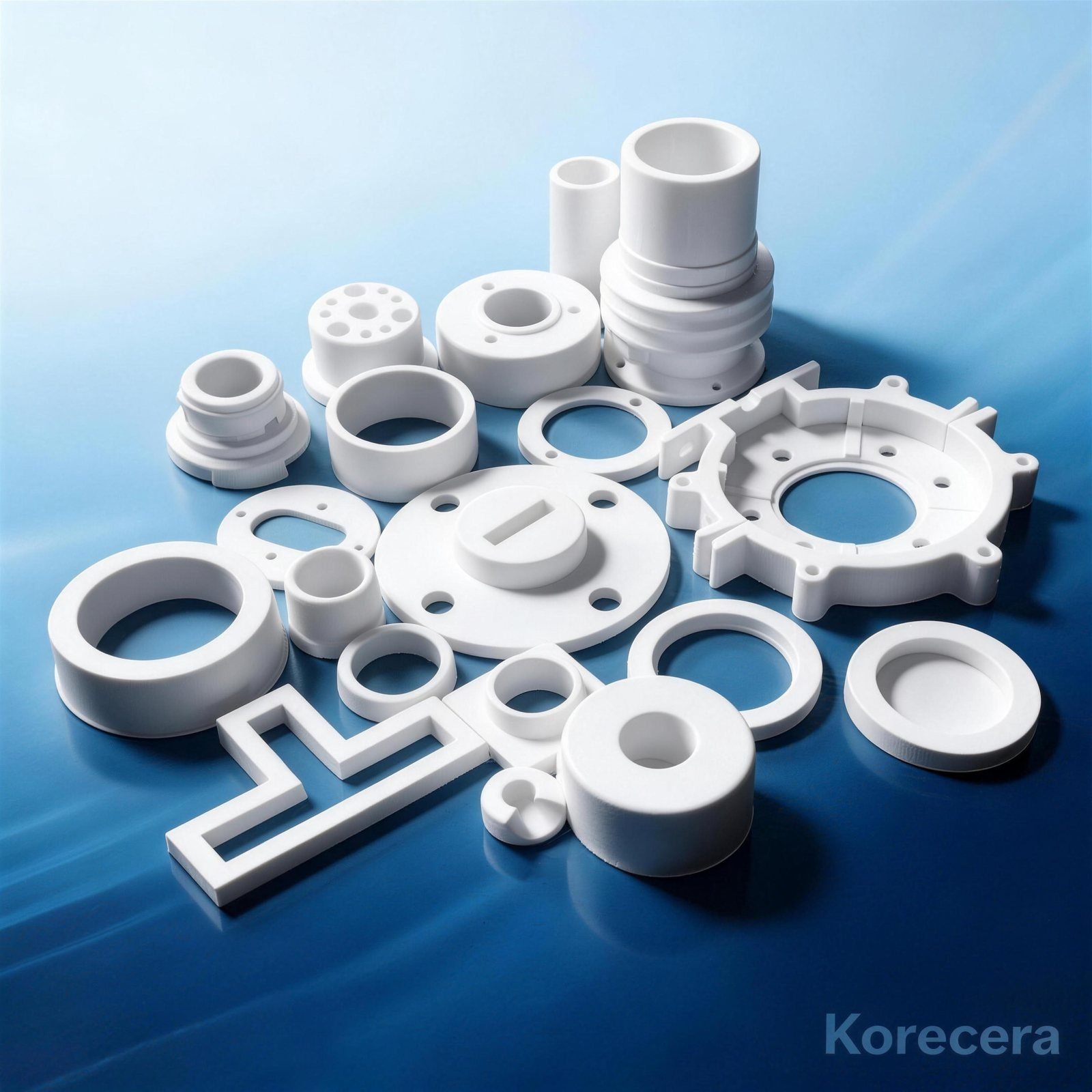

Precision Boron Nitride Ceramic Parts
High-Value Applications
Proven performance in high-vacuum technology, molten metal handling, and rapid prototyping
High-Vacuum & Sintering Technology
Molten Metal Handling
Rapid Engineering Prototyping
Typical Mechanical & Thermal Properties
Reference data for Hot-Pressed Boron Nitride at room temperature
| Property | Test Method | Unit | Value |
|---|---|---|---|
| Density | ISO 2738 | g/cm³ | 1.95 |
| Flexural Strength | ISO 14704 | MPa | 70 – 90 |
| Compressive Strength | ISO 14704 | MPa | 150 – 200 |
| Hardness | Mohs Scale | – | 1 – 2 |
| Thermal Conductivity | ISO 22007 | W/m·K | 40 (parallel to press) |
| Coefficient of Thermal Expansion | ISO 11372 | x10⁻⁶/K | 2.0 – 4.0 |
| Dielectric Strength | IEC 60243 | kV/mm | ≥ 25 |
| Volume Resistivity | IEC 60243 | Ω·cm | > 10¹⁶ |
| Max Service Temp (Air) | Continuous | °C | 900 |
| Max Service Temp (Vacuum) | Inert Atmosphere | °C | 2000 |
Precision Machining Capabilities for BN
Complex geometry machining with easy machinability and rapid turnaround
Complex Geometry Machining
Standard carbide tooling enables intricate features, deep pockets, thin walls (down to 0.2 mm), and complex contours without specialized diamond tooling.
Rapid Prototyping Turnaround
Easy machinability allows fast iteration cycles. Prototype components can be delivered in 3-5 days for design validation and testing.
Tight Tolerance Machining
Despite softness, BN can be machined to ±0.02 mm tolerances for critical dimensions, enabling precision fixtures and insulators.
Thread Milling & Tapping
Internal and external threads can be directly machined into BN components, eliminating need for metal inserts in many applications.
Large-Format Fabrication
Machining of large BN plates and blocks (up to 400mm x 400mm) for vacuum furnace linings and thermal insulation systems.
Clean Room Compatible
BN produces minimal dust during machining and operation, suitable for semiconductor cleanroom environments with proper handling protocols.
Validate Your Boron Nitride Component Design with KoreCera
Submit your 2D engineering blueprints or 3D CAD files (.STEP / .IGS) below. Our expert engineering team will conduct an in-depth Design-for-Manufacturability (DFM) review and deliver a competitive direct-factory quote. Fast-track prototyping completed within 7-10 business days. Full FAI, OQC, and material traceability reports provided upon delivery.
100% Strict NDA Protection Enforced
Submit Drawing for 24-Hour ReviewReady to Start Your Ceramic Component Project?
Send us your 2D drawings, 3D CAD files (.STEP / .IGS) or physical samples. Our engineering team will review manufacturability and return a competitive direct-factory quotation. Full NDA protection.
